Product Details
Place of Origin: CHINA
Brand Name: TORUI
Certification: ISO
Model Number: PLD3200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Custom required
Delivery Time: 20-25 Work Days
Supply Ability: 50 set/month
Project PLD800 PLD800S PLD1200-I Weighing Bucket Volume (m³): |
3.2m3 |
Storage Hopper Volume: |
3*20m3 |
Productivity: |
160m³/h |
Power: |
11kw |
Batching Accuracy: |
±2% |
Project PLD800 PLD800S PLD1200-I Weighing Bucket Volume (m³): |
3.2m3 |
Storage Hopper Volume: |
3*20m3 |
Productivity: |
160m³/h |
Power: |
11kw |
Batching Accuracy: |
±2% |

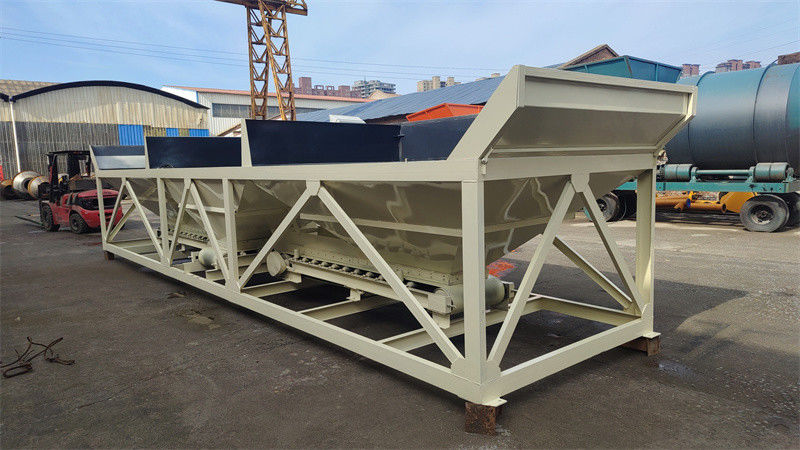

PLD3200 concrete batching machine
The PLD series concrete batching machine represents cutting-edge automatic batching equipment designed to operate alongside mixers. It enables precise batching of 3-6 different materials such as sand, stone, and cement, following user-defined concrete proportions.
Adhering to the technical standards specified in GB10172 for Concrete Mixing Plant batching systems, this machine employs electronic weighing, microcomputer control, digital display, and wired remote operation. These features ensure precise weighing, high batching accuracy, swift operation, and robust control functionalities. Its user-friendly interface simplifies operation to pressing a key for each step.
When paired with a corresponding concrete mixer, this series allows for versatile configurations of mixing plants with various types and specifications. Remarkably, it achieves this at a significantly lower cost (approximately 1/2 - 1/3) compared to standard mixing plants of similar capacities. Furthermore, its mobility facilitates easy on-site installation, making it an ideal choice for efficiently producing high-quality concrete.
|
Project |
PLD3200 |
PLD1600 |
PLD2400 |
|---|---|---|---|
| Weighing bucket volume (m³) | 3.2 | 1.6 | 2.4 |
| Storage hopper volume (m³) | 3*20 | 3*3.7 | 3*12 |
| Productivity (m³/h) | 160 | 80 | 120 |
| Batching accuracy (%) | ±2% | ±2% | ±2% |
| Maximum weighing value (kg) | 5000 | 3000 | 4000 |
| Number of aggregates that can be equipped (species) | 3 | 3 | 3 |
| Loading height (mm) | 3500 | 3000 | 3200 |
| Current belt speed (m/s) | 1.25 | 1.25 | 1.25 |
| Power (kw) | 11 | 4x3 | 11 |
| Overall weight (kg) | 10200 | 4750 | 8500 |
| Dimensions (mm) (length x width x height) | 10140x2900x4450 | 9600x2000x3200 | 9800x2840x3900 |
