Product Details
Place of Origin: CHINA
Brand Name: TORUI
Certification: ISO
Model Number: PLD800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Custom required
Delivery Time: 20-25 Work Days
Supply Ability: 50 set/month
Project PLD800 PLD800S PLD1200-I Weighing Bucket Volume (m³): |
0.8m3 |
Storage Hopper Volume: |
2x2m3 |
Productivity: |
48m³/h |
Power: |
3x3 |
Batching Accuracy: |
±2% |
Project PLD800 PLD800S PLD1200-I Weighing Bucket Volume (m³): |
0.8m3 |
Storage Hopper Volume: |
2x2m3 |
Productivity: |
48m³/h |
Power: |
3x3 |
Batching Accuracy: |
±2% |

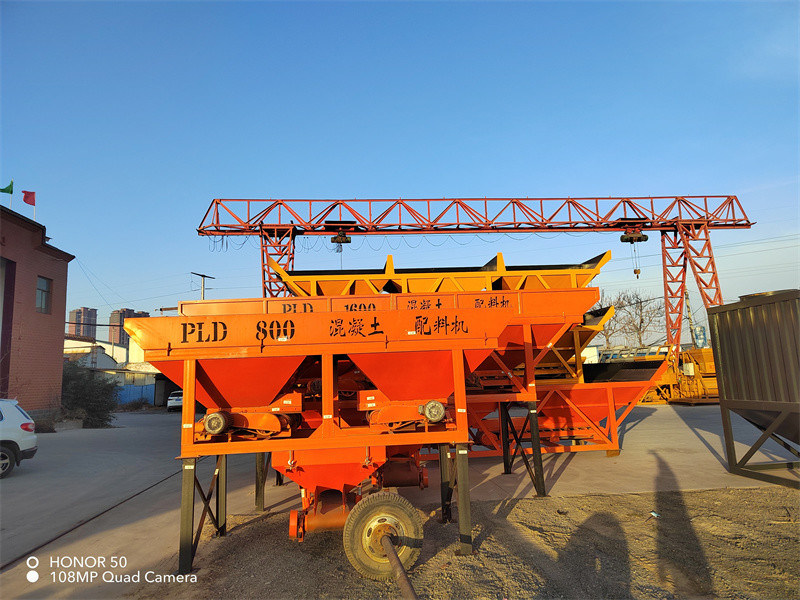

PLD800 concrete batching machine
PLD series concrete batching machine is a kind of foreground automatic batching equipment used with mixer. It can automatically complete the batching procedure of 3-6 kinds of materials (secondary concrete) such as sand, stone, cement, etc. according to the concrete proportion designed by users.
This series of products are designed according to the technical standard of batching system in GB10172 Technical Conditions of Concrete Mixing Plant. The machine adopts electronic weighing, microcomputer control, digital display, wired remote control operation, which has the advantages of accurate weighing, high batching accuracy, fast speed, strong control function, etc. The operation is so easy that you only need to press the key every time.
This series of concrete batching machine and the corresponding concrete mixer combination, can form a variety of different forms, different specifications of the combination of mixing plant, and the cost is only the same specifications of the mixing plant of 1/2 - 1/3, and mobile installation is very convenient, is the site of the production of high-quality concrete ideal equipment.
|
Project |
PLD800 |
PLD800S |
PLD1200-I |
|---|---|---|---|
| Weighing bucket volume (m³) | 0.8 | 0.8 | 1.2 |
| Storage hopper volume (m³) | 2x2 | 2x2 | 2x2.2 |
| Productivity (m³/h) | 48 | 48 | 60 |
| Batching accuracy (%) | ±2% | ±2% | ±2% |
| Maximum weighing value (kg) | 1500 | 1500 | 2000 |
| Number of aggregates that can be equipped (species) | 2 | 2 | 2 |
| Loading height (mm) | 3000 | 3000 | 3000 |
| Current belt speed (m/s) | 1.25 | 1.25 | 1.25 |
| Power (kw) | 3x3 | 3x3 | 3x3 |
| Overall weight (kg) | 2300 | 2500 | 2900 |
| Dimensions (mm) (length x width x height) | 6400x1600x3000 | 6400x1600x3000 | 6400x2000x3200 |
