Product Details
Place of Origin: CHINA
Brand Name: TORUI
Certification: ISO
Model Number: PF-1007
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Custom required
Delivery Time: 30-35 Work Days
Supply Ability: 30 set/month
Model: |
PF-1007 |
Rotor Spec: |
1000*700mm |
Feed Opening Size: |
400*730mm |
Max Feed Edge: |
300mm |
Capacity: |
30-50t/h |
Motor Power: |
37-55kw |
Weight: |
9.5t |
Model: |
PF-1007 |
Rotor Spec: |
1000*700mm |
Feed Opening Size: |
400*730mm |
Max Feed Edge: |
300mm |
Capacity: |
30-50t/h |
Motor Power: |
37-55kw |
Weight: |
9.5t |

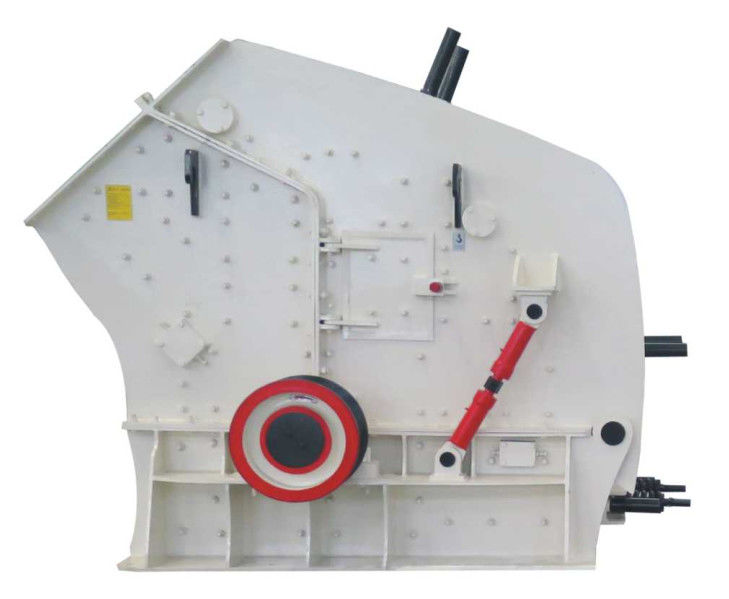

PF Series Impact Crusher
Brief Introduction
Impact crusher adopts the advanced technology and unique structural design,finished products present cubic shape without tension and cracks make the particle shape more perfectly.It can crush coarse,medium and fine materials small than 500mm,with compression strength lower than 350MPA,such as granite,limestone,concrete etc.Impact crusher is widely used in all kinds of ore crushing,railway,highway,energy,cement,chemical and construction industry etc.the output size can be adjusted.
Features and Advantages
1.Many cavities to crush,suitable for crushing hard rock;
2.Reasonable design of leveling plate makes final products finer and in cubic shape without interior cracks;
3.Low and big feed opening makes the production line easy to arrange and increase the size of feeding material;
4.Use the full hydraulic open device,easy to maintain and change wear-parts;
5.New anti-abrasive material makes longer service life of blow bar,impact plate and liner.
| Model | Rotor spec (mm) | Feed opening size(mm) | Max feed edge(mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Overall dimension (LxWxH)(mm) |
| PF-1007 | 1000*700 | 400*730 | 300 | 30-50 | 37-55 | 9.5 | 2400x1558x2660 |
| PF-1010 | 1000*1050 | 400*1080 | 350 | 50-80 | 55-75 | 12.2 | 2400x2250x2620 |
| PF-1210 | 1250*1050 | 400*1080 | 350 | 70-120 | 110-132 | 14.9 | 2690x2338x2890 |
| PF-1214 | 1250*1400 | 400*1430 | 350 | 110-180 | 132-160 | 18.6 | 2690x2688x2890 |
| PF-1315 | 1320*1500 | 860*1520 | 500 | 160-250 | 180-260 | 19.3 | 3096x3273x2667 |
| PF-1320 | 1320*2000 | 860*2030 | 500 | 160-350 | 300-375 | 28 | 3096x3560x3185 |
| PF-1520 | 1500*2000 | 1315*2040 | 700 | 300-500 | 400-450 | 42.8 | 3890x3560x3220 |
